Description
American Powertrain Pro-Fit Magnum 6-speed kit for 1968-74 Nova X-body for factory 4-speed cars
The Ultimate Overdrive for Novas!
30-50% increase in fuel economy
- Low RPM cruising for greatly reduced driver fatigue and an improved highway driving experience.
- Reduced engine wear leading to longer engine life
- Cooler engine operating temperatures
- Reduced NVH (noise – vibration – harshness)
Tremec T56 Magnum Gear Ratios
Close Ratio 2.66, 1.78, 1.30, 1.00, 0.80, 0.63
Wide Ratio 2.97, 2.10, 1.46, 1.00, 0.74, 0.50

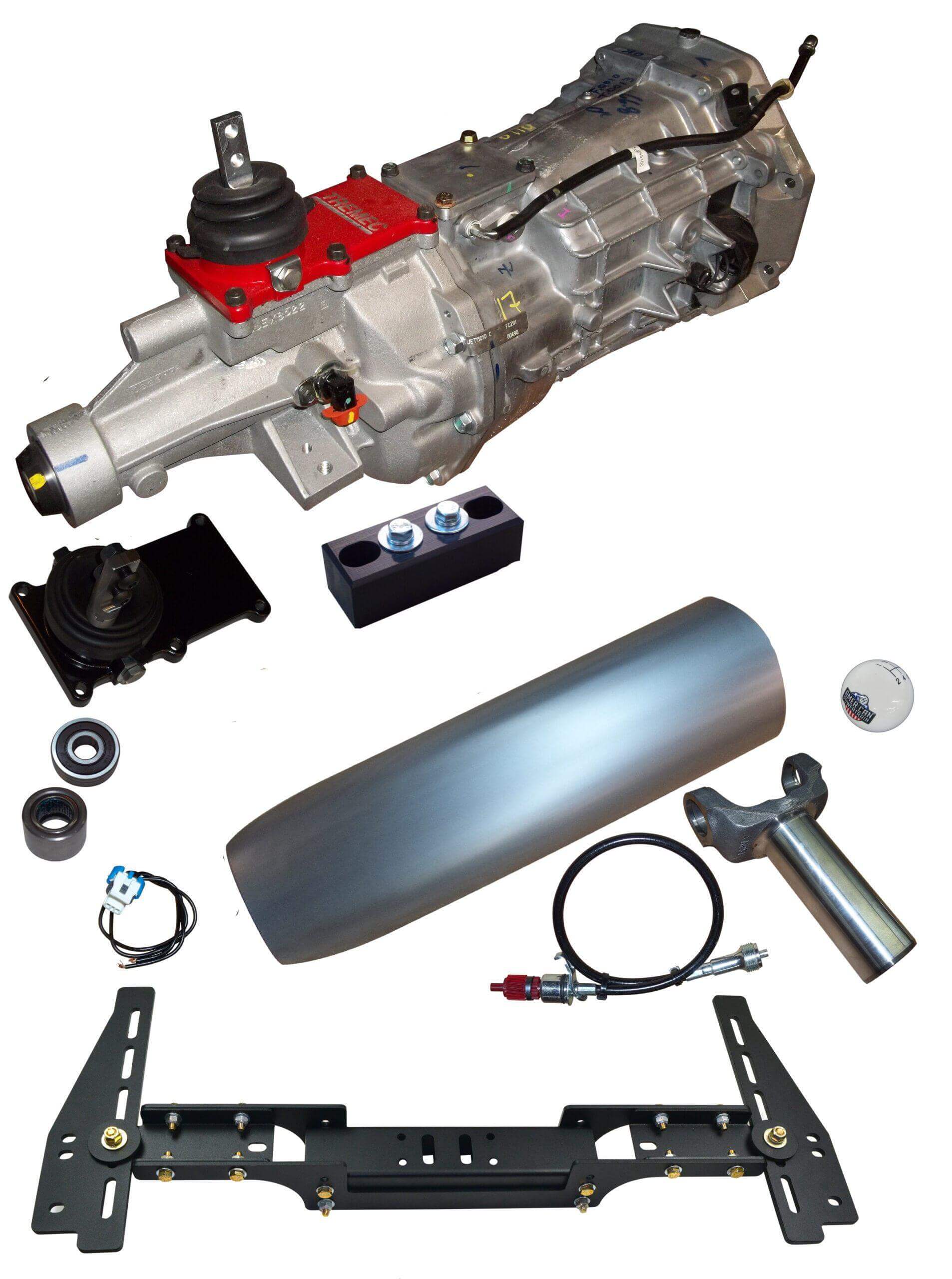

Kit includes:
- AP Revolution Shifter Mechanism – Original 4-speed shift position
- Driveshaft Slip Yoke – Cryogenically hardened steel
- X-Factor Cross Member Adjustable
- Transmission Mount – Polyurethane
- Pilot Bearing – Stainless rollers, grease pre-pak
- Reverse Light Harness – Weatherseal
- Speedometer Conversion – Mechanical or Electronic
- Shifter Knob
- Transmission tunnel patch
- Round Stock Chrome Shifter Handle
- Console Shift Pattern Plate
- Modular Reverse Lock-out Harness
- Modular Reverse Light Harness
- Hardware, Instructions, Warranty
- NOTE: Tunnel mods required!!
Optional Parts:

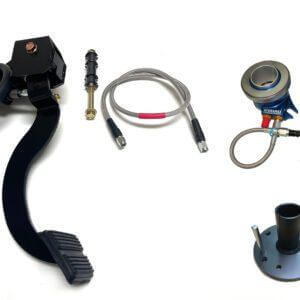

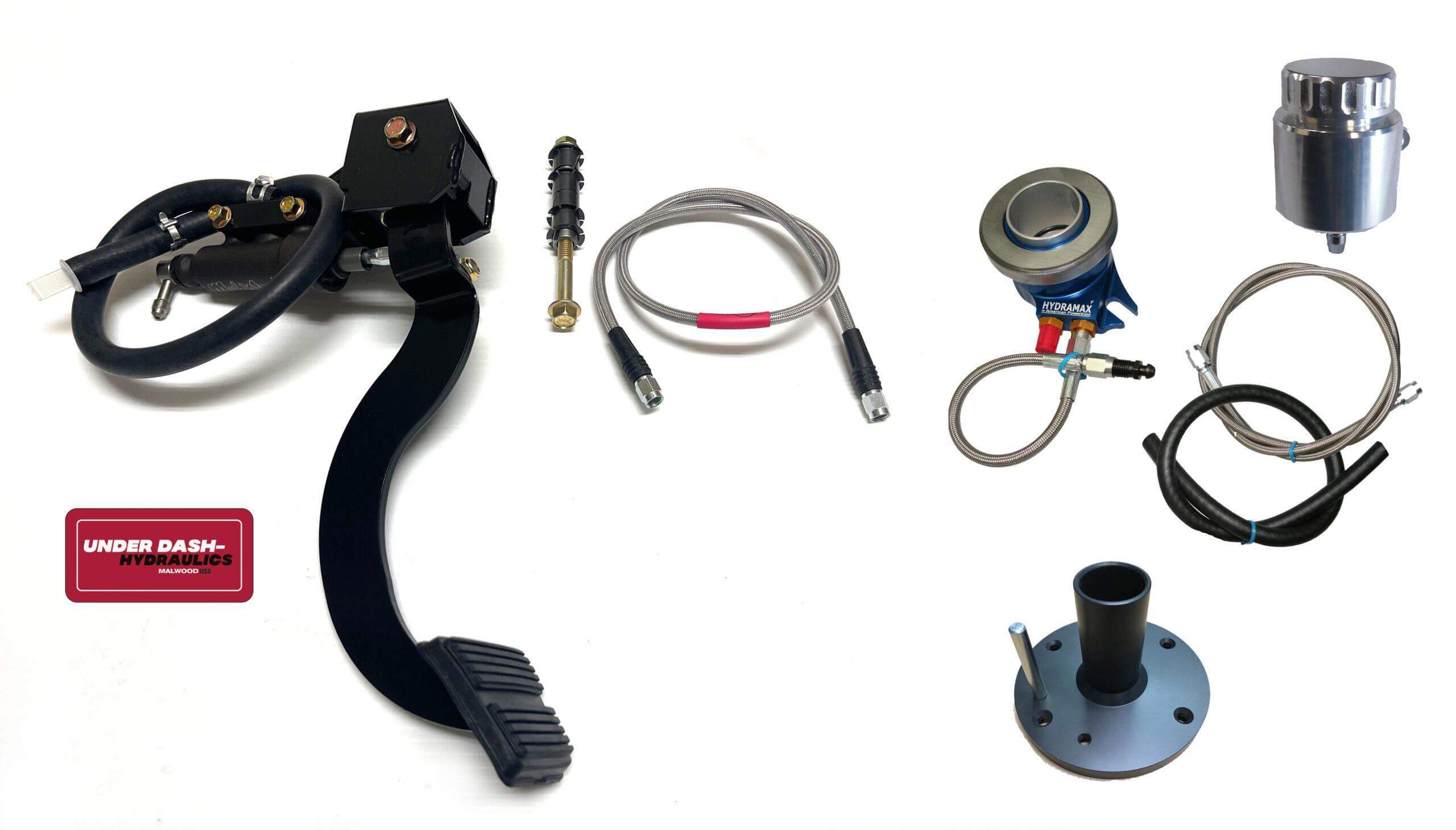

- Hydramax Hydraulic Clutch

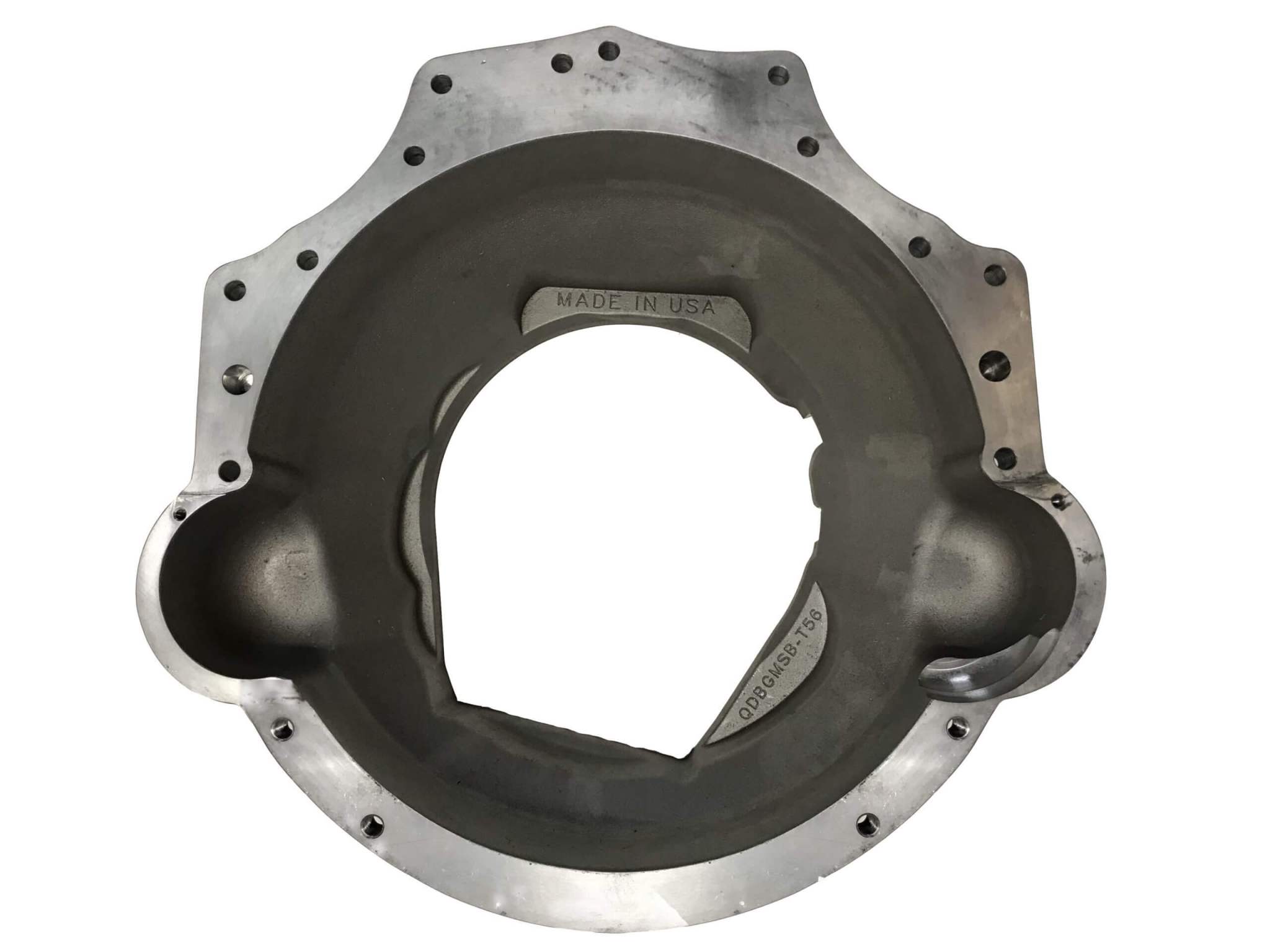

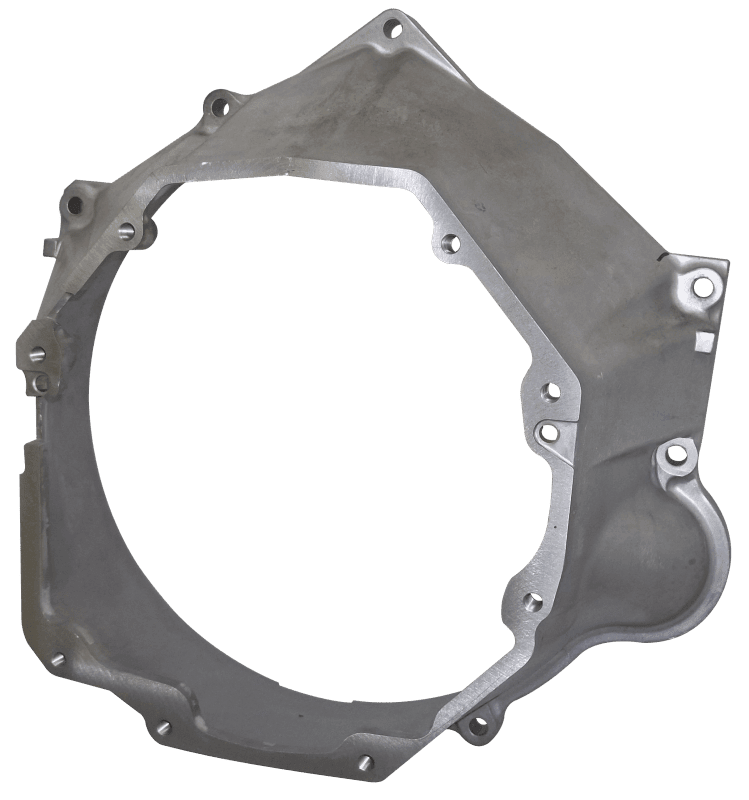

- Bell housing
- Flywheel
- Shifter
